Wenyrich 12-48V Battery Disconnect Master Power Cut-Off Switch - Heavy Duty On/Off Switch for Marine, Boat, RV, Car, Truck - Perfect for Battery Maintenance & Emergency Power Shutoff - Black

Specifications: Type:Battery SwitchSwitch Type: Single Circuit ON-OFFColor: BlackMaximum Voltage: 48V DCContinuous Rating: 300A Intermittent Rating: 500A (5 min)Cranking Rating 10 sec: 1500A Cranking Rating 1 min: 775ATerminal Stud Torque: 120 in-lb (13.56 Nm) Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm) Cable Size to Meet Ratings: 4/0 AWG (120mm sq) Terminal Stud Size: 3/8inch – 16 (M10) Alternator Field Disconnect: No Battery Inputs: 1 Mounting Holes: #10 Screw Weight: 0.65lb (0.29 kg) The package: 1xm-series Battery Switch Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

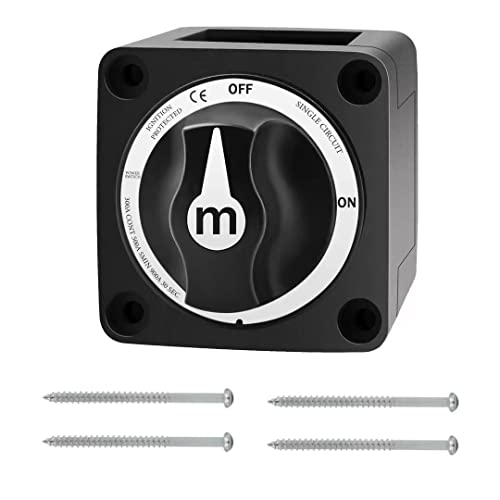

Battery switch m series ON/OFF with knob, part number 6006, is a single loop ON-OFF switch. Switch a single battery to a single load group, suitable for low amperage battery switch hole style.

Anti-ignition, can be safely installed on gasoline-powered boats, the chassis design allows surface, front panel or rear panel installation.

The contact design before the break point can switch between battery packs without interrupting the power supply.

300A continuous rating-45% higher than standard switch, continuous rating: 300A, maximum voltage: 48V DC, with luminous label.

Isolation cover with buckle part can protect the rear contact.
