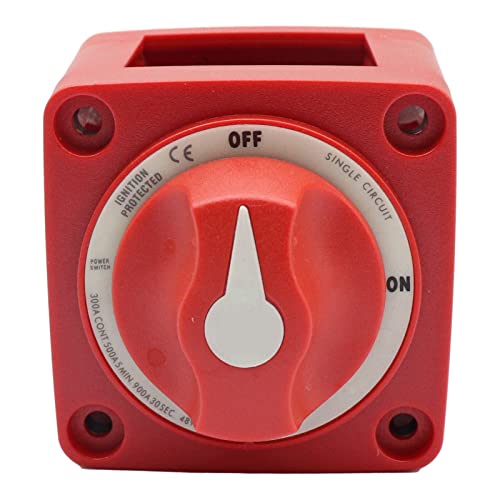

Fuoequl 6006 Dual Battery Switch - Compatible with Blue Sea 6006 M-Series, Single Circuit On/Off RV Battery Disconnect Switch for Marine, Boat, and RV Power Systems - Perfect for Battery Management in Off-Grid and Mobile Applications

Systems M-Series mini on/off battery switch with knob. Red in color. Part number 6006. Switches a single battery to a single load group. Battery kill switch for boat protection can be securely installed on gasoline powered boats and can also be used in RV battery Disconnect switch Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts Battery Switch Type: Single Circuit ON-OFF Color: Red Switch Positions: 2 Alternator Field Disconnect: Battery shut off switch Maximum Voltage: 48V DC Terminal Stud Torque: 120 in-lb (13.56 Nm) Continuous Rating: 300A Intermittent Rating: 500A (5 min) Cranking Rating 10 sec: 1500A Cranking Rating 1 min: 775A Battery switch on/off Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm) Cable Size to Meet Ratings: 4/0 AWG (120mm sq) Mounting Holes: Accept #10 Screw Terminal Stud Size: 3/8″ – 16 (M10) Weight: 0.65lb (0.29 kg)

Systems M-Series mini on/off battery switch with knob. Red in color. Part number 6006. Switches a single battery to a single load group.

Battery kill switch for boat protection can be securely installed on gasoline powered boats and can also be used in RV battery Disconnect switch Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts

Battery Switch Type: Single Circuit ON-OFF Color: Red Switch Positions: 2

Alternator Field Disconnect: Battery shut off switch Maximum Voltage: 48V DC Terminal Stud Torque: 120 in-lb (13.56 Nm) Continuous Rating: 300A Intermittent Rating: 500A (5 min) Cranking Rating 10 sec: 1500A Cranking Rating 1 min: 775A

Battery switch on/off Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm) Cable Size to Meet Ratings: 4/0 AWG (120mm sq) Mounting Holes: Accept #10 Screw Terminal Stud Size: 3/8″ – 16 (M10) Weight: 0.65lb (0.29 kg)
