14" Non-Powered RV Roof Vent with Smoke Wedge Lid & 4" Garnish Ring - White | RV Camper Van Ventilation Upgrade for Better Airflow & Temperature Control

Standard Universal RV Roof Vent (NON-POWERED) w/ Smoke Wedge Style Lid Heng's Industries Part # 74111A COLOR Translucent Smoke REMOVABLE SCREEN made from strong, fine mesh HANDLE Manual Crank Style ROUGH CUT-OUT OPENING DIMENSIONS (this is the hole you will need in your roof) 14 1/2” X 14 1/2” ROOF FLANGE Galvanized Steel with Mill Finish EXTERIOR MOUNTING FLANGE DIMENSIONS (sits on the top of your unit) 16 1/2” X 16 1/2” WARNING **** All Vent Metal Flanges are VERY SHARP use caution when touching **** WARNING 4” OEM INSIDE GARNISH SHROUD Part #90094 Trim ring slides into track built-into screen housing 4” Vertical Leg (How far up into your ceiling it goes) 1 1/4” Wide Mounting Flange (trim you see inside) COLOR white NO MOUNTING HARDWARE you must provide caulk/putty and screws

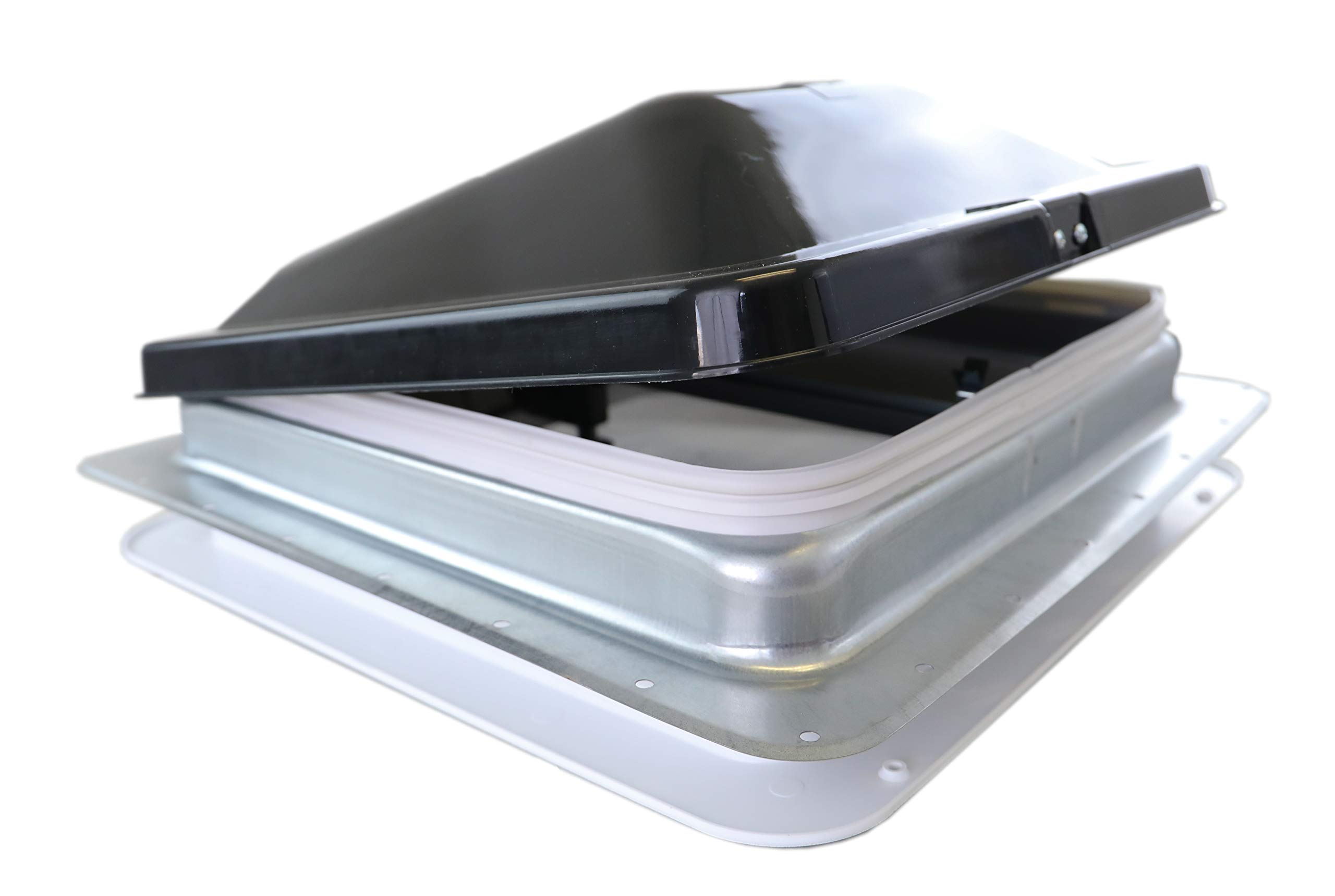

Standard Universal RV Roof Vent (NON-POWERED) w/ Smoke Wedge Style Lid Heng's Industries Part # 74111A

MANUAL CRANK HANDLE to open lid - MESH SCREEN

ROUGH CUT-OUT OPENING DIMENSIONS (this is the hole you will need in your roof) 14 1/2” X 14 1/2

4" Inner Garnish / Trim Ring Heng's Part #90094 - 4" Vertical Leg (How far up into your ceiling it goes) 1 ¼” Wide Mounting Flange (trim you see inside on the roof)

EXTERIOR MOUNTING FLANGE DIMENSIONS (sits on the top of your unit) 16 1/2” X 16 1/2” - NO MOUNTING HARDWARE you must provide caulk/putty and screws ****WARNING All Vent Metal Flanges are VERY SHARP use caution when touching WARNING ****
